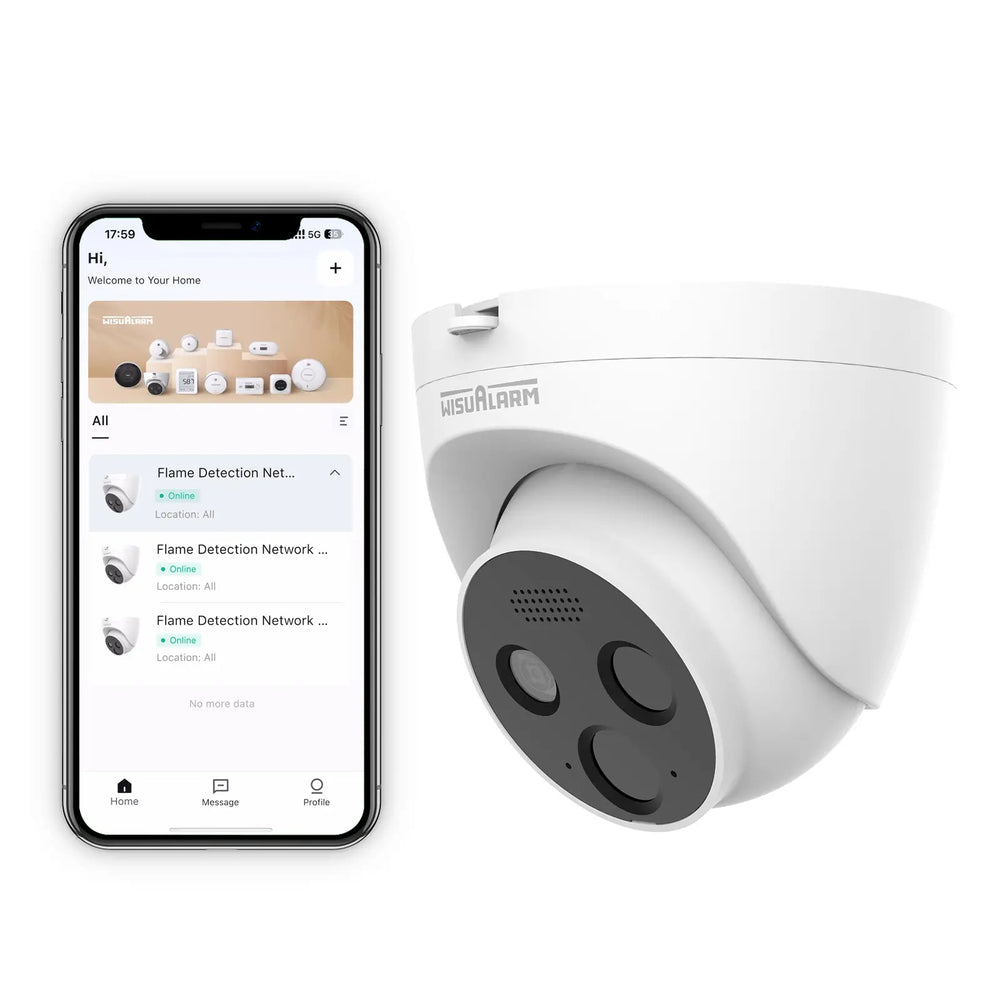

Flame Detection Network Camera Pro
Description
Audible and Visible Notification

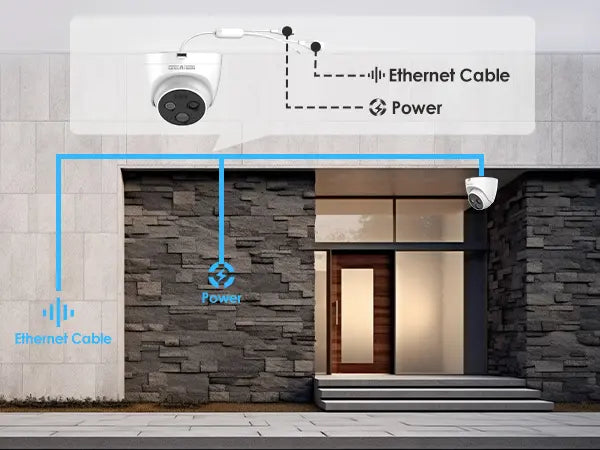

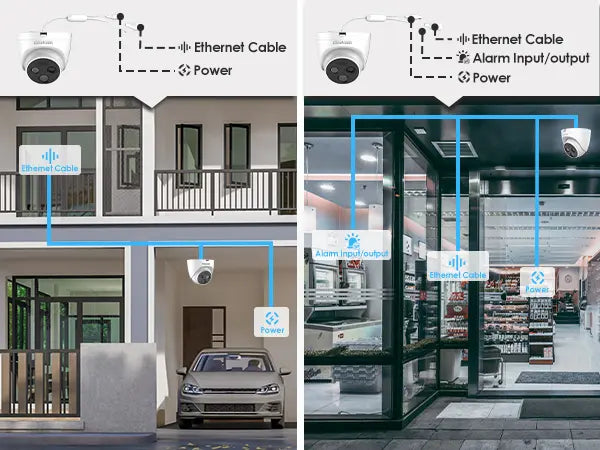

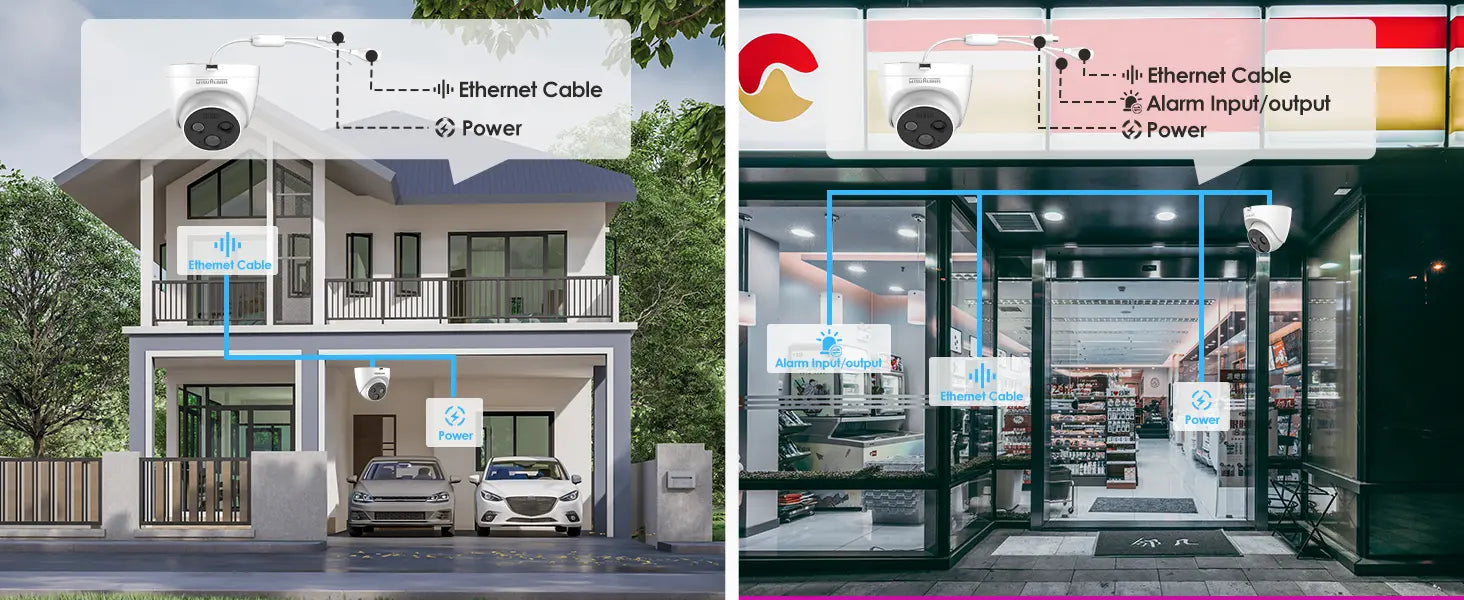

Flame detection network camera can provides intelligent visual and audible warning. Featuring remote intercom and alarm input/output functionality, it realizes convenient linkage.
Dual Image Output
Increase Productivity with High-Quality Dual Image Output Solutions. Experience a boost in productivity with our high-quality solutions designed to streamline your workflow.
Flame Detection Camera Pro Features
Enhance Your Surveillance System with Versatile Detectors Offering Numerous Features.
Specification
Specification
| Model | DHI-HY-FT431LDP |
|---|---|
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 120 (H) × 90 (V) |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 μm–14 μm |
| Flame Detection Distance | 10 m: 10 cm × 10 cm |
| Power Supply | 12 VDC ± 20%; PoE |
| Operating Temperature | –20°C to +60°C (–4°F to +140°F) |
| Relative Humidity | ≤95% |
| Storage Temperature | –20°C to +70°C (–4°F to +158°F) |
| Bracket | Junction mount: PFA130-E |
| Lens | Included |
| Net Weight | ≤ 0.85 kg (1.87 lb) |
| Product Dimensions | φ110mm × 88.6mm (φ4.33" × 3.49") |
| Installation | Ceiling Mount |
FAQ
FAQ
What is the function of the flame detection network camera?
The product has the ability to detect flame and abnormal temperature based on thermal sensor, which is designed for fire detection in SMB scenarios such as small warehouses, garages and etc.
What is the power supply of the flame detection network camera?
Like other network cameras, the product is powered by DC 12V or PoE.
What is the detection range for the flame detection network camera?
The flame detection network camera has the ability to detect the flame from the distance up to 10 meters.
